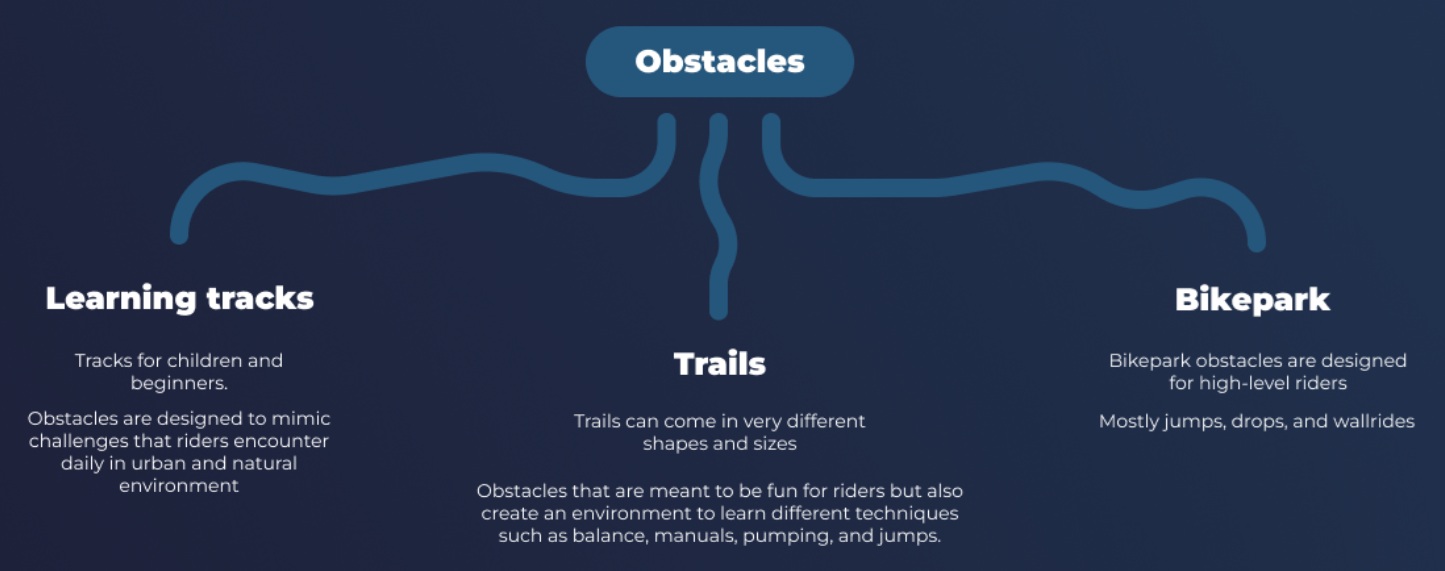

CYCLEGROUNDS PRODUCTS CAN BE CATEGORISED INTO 3 MAIN PRODUCT LINES
Technical Specifications: Built for Safety, Durability, and Performance
Our obstacles are engineered with high-quality materials and thoughtful design to ensure long-lasting use and a safe, smooth experience for children.

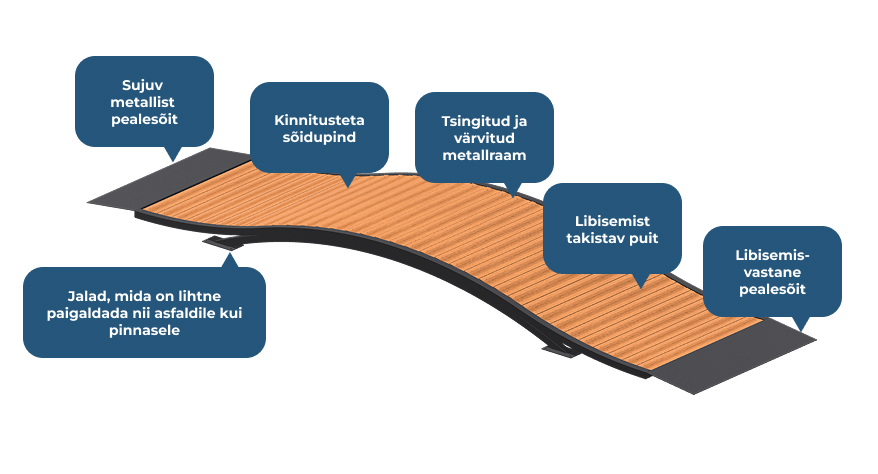

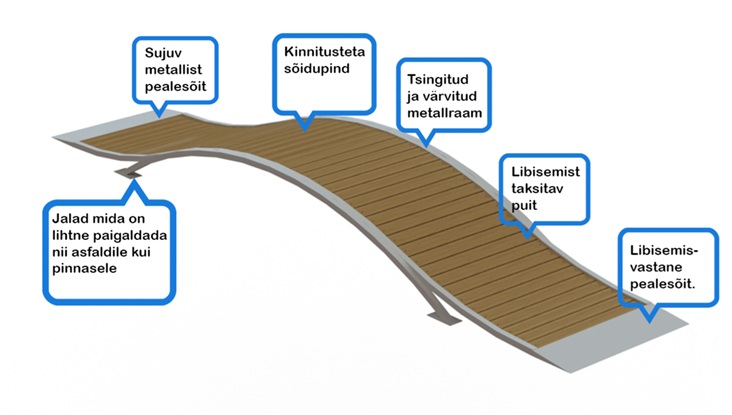

- Strong Steel Frames
• Constructed from 40mm x 40mm premium steel tubing
• Provides robust structural integrity for all obstacle types - Paint & Zinc Coating
• Frames are zinc-coated and powder-coated
• Ensures long-lasting protection and a fresh, vibrant appearance - Vacuum-Impregnated Wooden Surfaces
• Wood components are treated for deep protection
• Resistant to moisture, wear, and outdoor conditions - Screw-Free Riding Surface
• Assembled using M8 grade 8.8 bolts
• No screws or bolts on top surfaces—ensuring smooth, safe riding - Stainless Steel Ends
• Ends are finished with stainless steel for a seamless ride
• Reduces friction and wear while enhancing durability - Optional Anti-Slip Surface
• Anti-slip coating available for stainless steel ends
• Adds extra grip and safety, especially in wet conditions
Assembly Instructions
Our products are typically delivered pre-assembled, making installation quick and straightforward. Most obstacles can be securely fixed in place within a single day, and no specialized skills are required—anyone can do it.

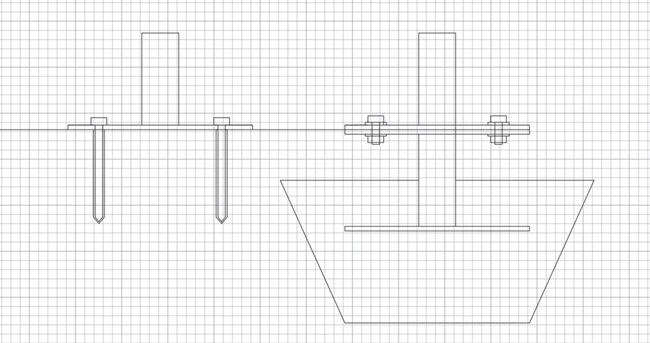

Ground Attachment Methods
- Asphalt / Concrete Surfaces
The simplest installation method. Obstacles are anchored directly into the surface using screws and dowels. - Gravel Surfaces
For gravel installations, we provide additional support legs that can be embedded into the ground.
Depending on the surface conditions, these legs may or may not require concrete for stability.
Modular Obstacles
- To facilitate transport, some longer obstacles are built using a modular system. Modules are easily connected using M8 grade 8.8 bolts and steel frame joints, allowing for fast and secure assembly on-site.
Our products are made following ISO and CE standards.
Our products are protected by design patents.
Our products have patented solutions.
